I did up some drawings for a Ork warbuggy based on the VW WWII Kubelwagon. I made 2 versions. One is 3.9" x 2.2" and has the 4 doors seen on the original vehicle. The second one has trhe 2 rear doors removed and is 3.2" x 2.2". The drawing are ment to be printed on A4 or letter size card stock or transferred to styrene sheet. I did the later.

I'm not sure how to post an image that's hosted on flickr, so here's some links:

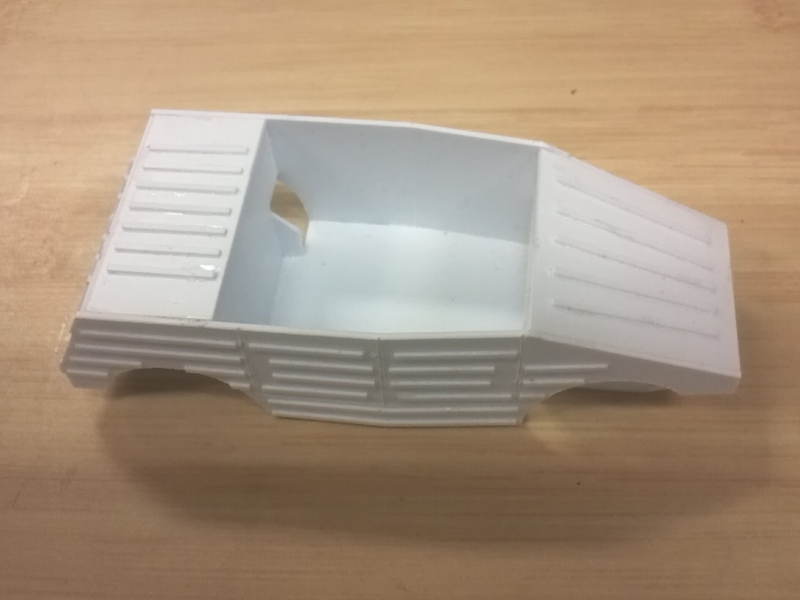

My second prototype. It's missing the fenders, as I was building this late at night and didn't want to wake my wife by boiling water in the kitchen.

<https://www.flickr.com/photos/73719520@N00/15188244746/in/photostream/>
<https://www.flickr.com/photos/73719520@N00/15188244376/in/photostream/>
<https://www.flickr.com/photos/73719520@N00/15210878962/in/photostream/>

I used 1mm styrene sheet and 1 x .5mm strips. and model cement. I used the drawing below. I attach the cut diagram to the sheet using Elmer's White glue (PVA) thinned with 70% alcohol. I spread this on the plastic and then press the paper in place. I make all my cut line with a blade of exact 0, including light scratches to indicate where the strips go. The the paper peels right off. I glued the strips on first then assembled the body, starting with the inner wheel wells onto the bottom plates.

Full size version with 4 doors. I'm thinking about mounting a pair of small tracks to replace the back wheels to build a skorcha.
<https://www.flickr.com/photos/73719520@N00/15210876052/in/photostream/>

The shortened version, missing the rear doors, but a more appropriate size for a warbuggy.
<https://www.flickr.com/photos/73719520@N00/15024694457/in/photostream/>

To post an image that's hosted somewhere, right click on the image, copy image location (or image URL, depends on your browser but they mean the same thing) and then paste it between IMG tags here. Those tags are (without quotes) ["IMG"]imageurlgoeshere.jpg["/IMG"]

That being said, I look forward to seeing how the KubelWAAAGHen comes together!

Thanks, I'll use that for followups.
