I'm trying to do an underwater effect for a display base that I'm working on. The premise is that it'll be a lizardman standing on a rocky outcrop over a river holding the heart of a skaven he's just sacrificed and thrown into the water, with the skaven drifting down under the water and a school of piranhas coming to finish off the corpse. I already know how I want to do it, but I just have a few questions about pouring resin and suspending anything in it.
1. To suspend things in resin, do you need to pour multiple layers and gradually embed things in it, or do you just do it all at once and place them in it.
2. How would you go about making a cloud of blood underwater in resin? Would you use an ink or what?
3. Any ideas on the piranhas, or just green stuff them?

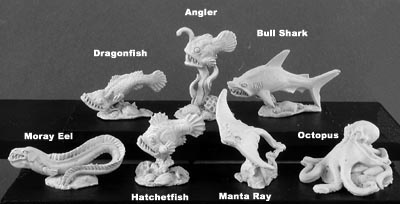

Hmmmm not sure about Pirahnas but reaper minis makes some pretty sweet aquatic critters.

Theres a shark, some ugly fish, and an octopus


Automatically Appended Next Post:
Could some of them work as pirahnas?


Automatically Appended Next Post:
Oh, and i only know a bit about resin, but if your pour it all in at once, i think it clouds up.

Hmm, the hatchetfish could work, but I'm not sure GW would allow me to enter it in Golden Demon with Reaper bitz. I actually don't really know the rules on that.

When you pour resin in layers, the outside will form a thin film of junk called blush, you need to clean this off in order to avoid the obvious appearance of layers and problems with bonding. Maybe there are some resins that don't blush, I don't know.

Even then it is hard to get rid of all the evidence of pouring different layers. I'd pour it so the layers were standing up on their sides so you pour the front on the bottom and successive layers would end up being farther back when you stand the whole thing up. Does that make sense? Cause then you are looking through one solid piece of resin as the window, and the layers and other color differences are hidden by that.

I hope you can picture what I'm talking about. If not I'll draw a picture.


Automatically Appended Next Post:


If you do it this way and stand it up it will also be easier to get a smooth viewing window. Let us know what you decide!

You might find this article helpful: http://www.reapermini.com/TheCraft/49

If you get the right sort of resin you can do the lot in one pour, so no layers. If you try doing more than the type of resin can handle you'll screw your entire piece up. I'd really make sure you do a practise run on a less important model first.

There was a Privateer Press diorama of a warjack underwater. Can't remember the name of it, you might have to do some searching, but the model was completely underwater with some fish and other stuff.

Just saw this one the other day.

Well Aduro, that's pretty much the exact effect I'm trying to achieve.

the link to reaper above is a how to on how he did the pic directly above. he did a single pour, and suspended the shark with clear acrylic rod. im thinking of doing parts of my fantasy army like that, but it was said that there were a gak ton of hours of sanding to get it to look like that and not cloudy. post your attempts id love to see.

Yeah, that's probably what I'm going to do too. I'll need some small clear rods for the piranhas and the skaven. I think I'm gonna use the Grey Seer from the Screaming Bell box. I was gonna make it a furnace anyway...
Fantastic article, btw.

This is the model that I'm rebasing.

Looks sweet, good luck with that.

Are you planning on the resin to go all the way up to his knee, or where? It looks like you don't have a lot of room to work with there.

I'm going to take the Lizardman completely off of this base and do a new one with him standing on a little outcropping of rock over a river, with a different skaven floating to the bottom.

eledamris wrote:I'm going to take the Lizardman completely off of this base and do a new one with him standing on a little outcropping of rock over a river, with a different skaven floating to the bottom.

Ah. Hmmm.... I'll post later if I can find a nice piranha model.

Don't let this thread die!

Any word on how its going?

Here's the underwater warjack
http://www.toycutter.com/2008/09/how-to-make-water-effect-using-resins.html

So, how's it coming along?

Looking amazing.
